Flip Top Caps Mould

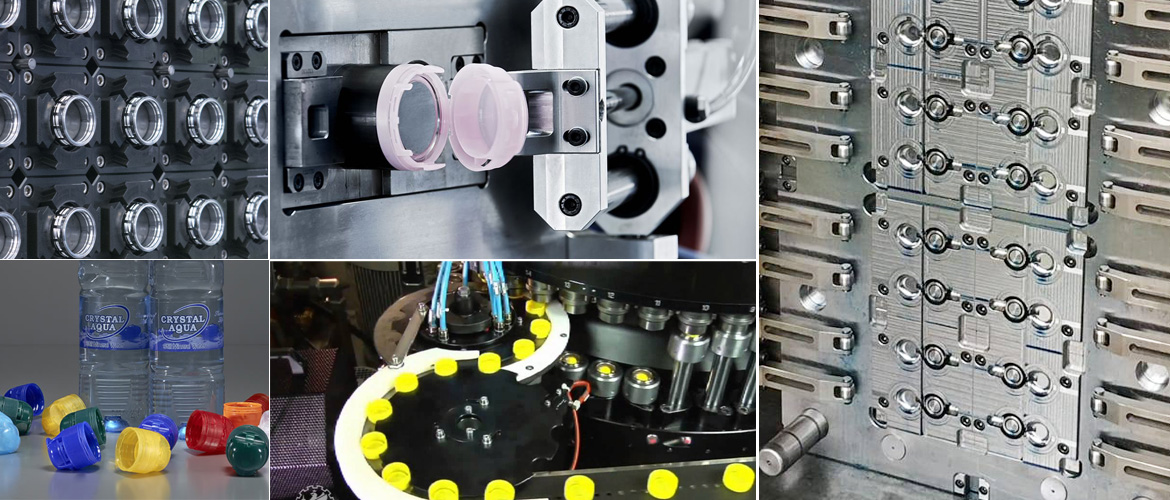

Plastic Flip Top Cap mould Main feature

1.Plastic flip top cap mold cavity from 1 up to 96.

2.Electric control system with simulating stretch testing improve yield rate.

3.Adopt world advanced dipole taper localization technique, each cavity self-clamp independently, ensure mould concentricity.

4.The material of mould die core and die cavity are made of Sweden special mould steel.

5.International standard screw neck, imported nitrided steel with high hardness is of long usage.

6.Advanced hot runner design and even heating temperature make sure the high quality of plastic products.

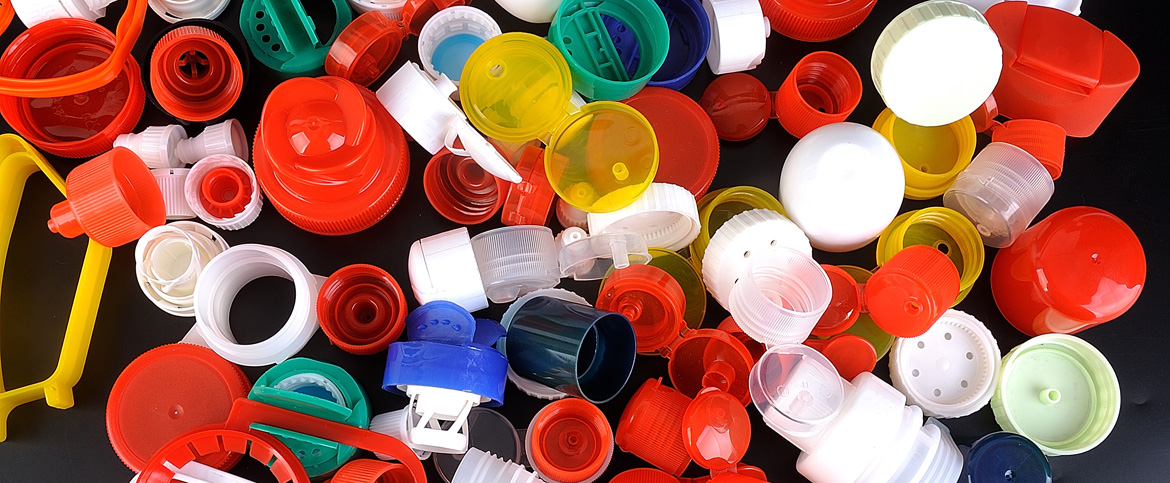

Flip-top Cap & Closure Molds enable a hinge to be incorporated in the plastic part design. Parts are typically molded in the open position and may be ejected “open” or in the “closed” position. We make a variety of flip top closure molds with multi-point hinges, butterfly hinges and in-mold closing technologies for household, personal care, food, pharmaceutical, and beverage customers.


  • Description
Location:TAIZHOU,CHINA
Business Type:Manufacturer, Exporter
Model:Plastic mould and machinery
Delivery method:By air, By sea, By express.
Minimum order quantity:1PC/SET
Price:Consultation
Packing details:Standard export packing way
Delivery time:30-60days
Payment method:TT,LC,Paypal,Westen Union

● Plastic Flip Top Caps Injection Mold Cavity:4 & 8 & 16 Cavities.
● Plastic Flip Top Caps Injection Mold Main Material:SUS420 HRC50˚±1˚.
● Plastic Flip Top Caps Injection Mold Injection System:Cold Runner System.Hot Runner System (Taiwan Brand).
● Plastic Flip Top Caps Injection Mold Ejection System:Ejector Pin & Stripper Plate & Two Steps Ejector.
● Plastic Flip Top Caps Injection Mold Cycle Time:10 ~ 18 ± 2 Seconds.
● Plastic Flip Top Caps Injection Mold Running:1 year Guarantee; Shots guarantee 1 million under the normal operation and period maintenance.
● Plastic Flip Top Caps Injection Mold Delivery Time:80 ~ 100 working days to T1 sample delivery.
● Plastic Flip Top Caps Injection Mold Features:High Polish.


1. Product Specification

Place of originChina
Cavity8
Mould base materialP20, 420 etc.
Core, cavity, neckS136, 2316, SKD61 etc.
Surface treatmentHigh polish
warranty1 year without man-made

1.The mold plate is made of stainless steel.
2. Mold ranges from 1 cavity to 72 cavities.
3. Standard interchangeable mold components.
4. High performance hot runner system ensures uniform melt flow and pressure in all cavities.
5. All of parts are manufactured by CNC equipments.
6. Advanced structure is designed consulting European cap mold.
7. Mold cavity and Core are made of steel with fine polishing, high hardness and anti-corrosion to get mold's high precision and good quality.
8. Pneumatic drive the nozzle pin for simultaneous high-speed open and close actions.
9. Patent designed rectifying system is adopted to lessen the possible preform thickness problem happening during production.
10. Special designed water hoses eliminate leakage and water marks on preform.
11. Mold flow analysis reduce AA level.
12. Long using life over 2.5 million times of injection cycle.DSC_1572.jpg

Product Name
China Taizhou Fashion Design Hot Selling Shampoo Detergent Bottle Plastic Injection Flip Top Cap Mould
Cavity&Core SteeP20H,718H,2738H,S136,H13 etc.
Product MaterialPP,HDPE,LDPE etc.
Mould BaseLKM,ISM,HASCO,DME
Cavity8 cavities
Mould life500,000 ~1million shots
runner typecold/hot runner
Delivery time30~60day
The main Mould Steel and Hardness for you reference:
Steel GradeS50CP20P20HH718H2738HH13S136NAK80
Hardness(HRC)
17-22
27-30
33-37
33-38
36-40
45-52
48~52
34-40
