High quality Engine oil bottle cap injection mould,Taizhou Shuanghao Plastic Mould Co., Ltd.

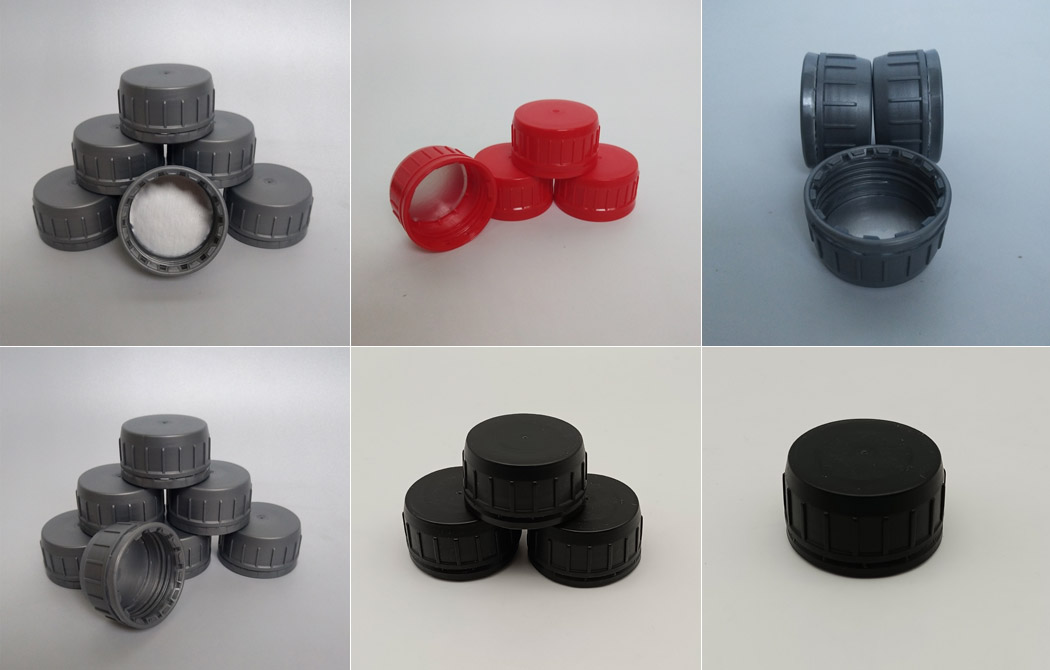

Customized Multi Cavity Diameter 42mm Plastic Injection Engine Oil Bottle Cap Mould

Cavity	1-72
Mould base material	P20 , 45# , 4CR13 , .ECT
Core&Cavity material	S136,718, P20,2378,2316,4CR13,P20 .ECT
Runner	Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
Life time	3,000,000 shots
Quick T1 time	25-40 days
Package	wooden case
After Sale Service	Any mould problem,we will provide free maintenance service

ADVANTAGE

1) Saving 10%-30% cost than others.

2) Direct factory price

3) Life:3, 000, 000 time

4) 2D and 3D provided

5) Quick T1 time: 25-40 days

6) More than 15 years experience

MOULD MANUFACTURE PROCESS

1)Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install

2) Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→polish→electroplate→install

FLOW CHART

1	Sample or 2D,3D drawing from customer
2	Bulid 2D,3D drawing
3	CAD mould design
4	Send drawing to customer to confirm
5	Parts inspection/CNC machining/EDN machining
6	Mould assembly
7	Mould test
8	Send sample to confiom
9	Dilver the mould

Our Services

1. 2D&3D mold design (CAD, UG, Solidworks, ProE, etc, 2D drawing: DXF, DWG, PDF file, 3D model: IGS,PRT,X-T, e-drawing for free.)

2. Mold flow analysis report

3. Weekly report for progress

4. ISIR (Sample Inspection Report)

5. Mold trial, process sheet

6. Pilot production

7. Mass production

8. Assembly

9. Second operation such as oil spout, silk screen, pad printing and assembling

10.Packing & Delivery arrangement

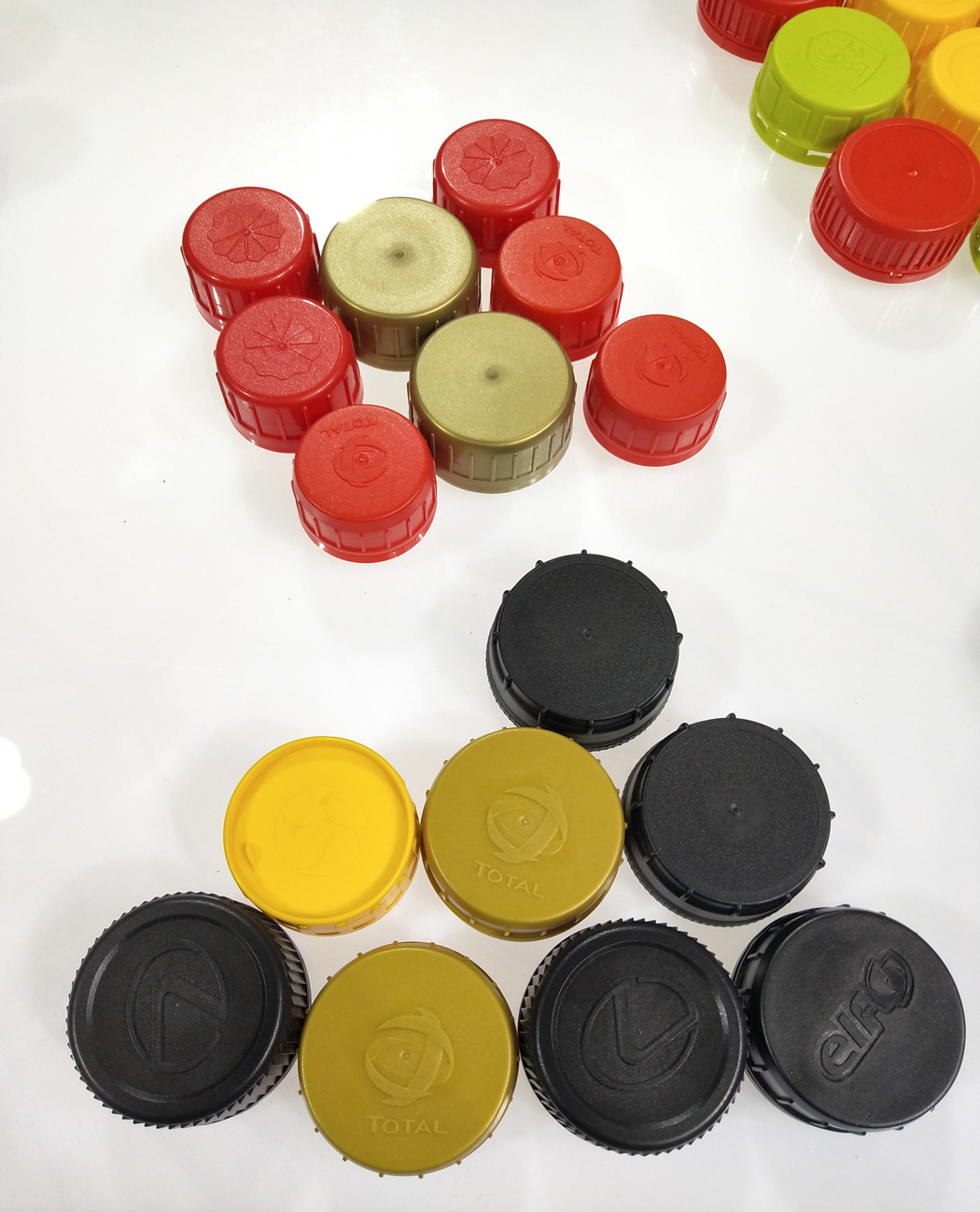

Bottle cap molds
