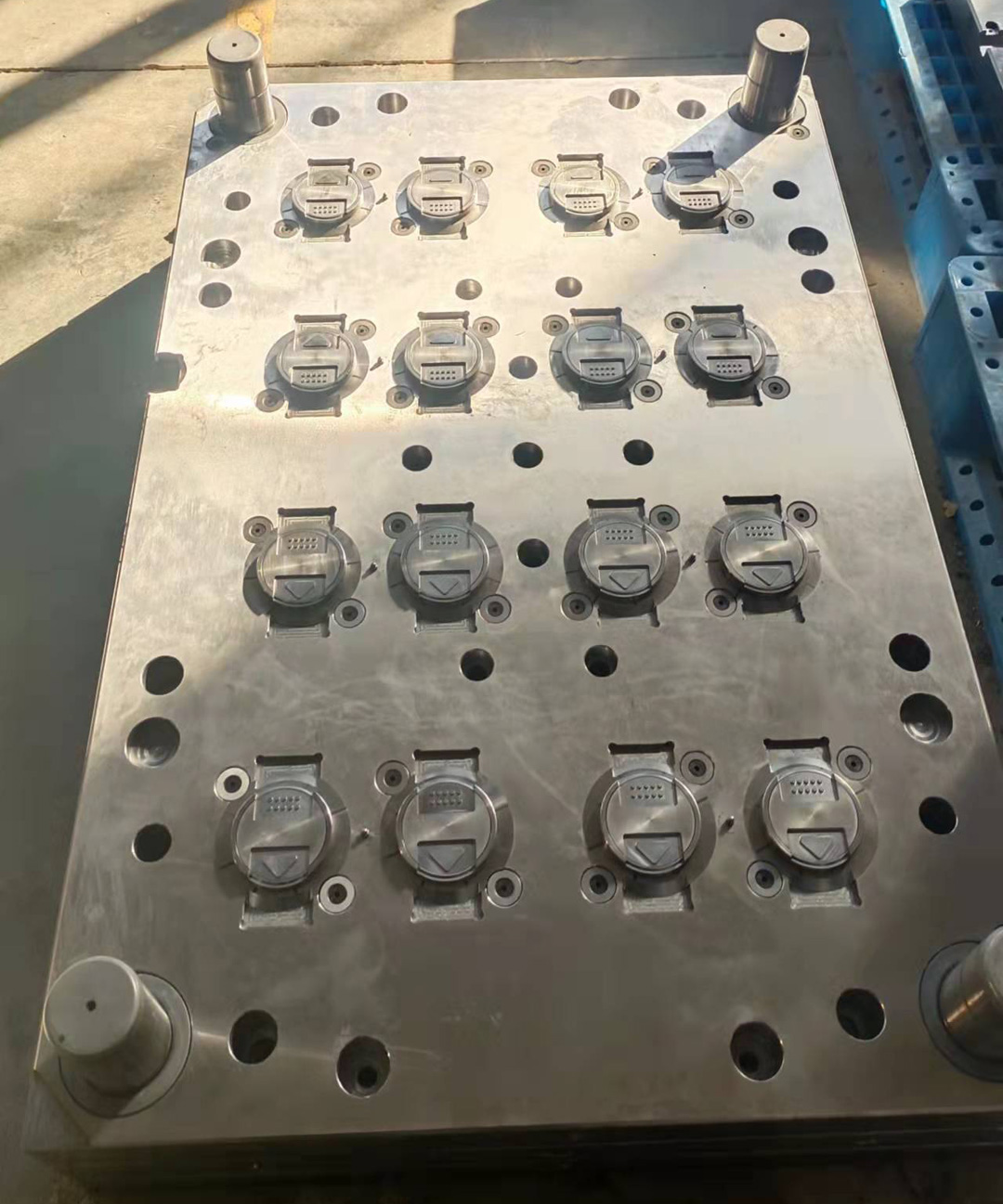

1.Cavity:1-16
2.Mould base material :P20 , 45# , 4CR13 , .ECT
3.Core&Cavity material : S136,718, P20,2378,2316,4CR13,P20 .ECT
4.Runner: Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
5.Life time:3,000,000 shots
6.Quick T1 time:25-40 days
7.Package:wooden case
Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install
Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→polish→electroplate→install
Need vale ,itself-locking :new advanced needle vale gate system.each cavity is self-lock independently to ensure low decent ration of product.
The excellent hot runner design assures uniform heating and greatlyimproves the quality of plastic products
Any mould problem,we will provide free maintenance service
6. FLOW CHART
| 1 | Sample or 2D,3D drawing from customer |
| 2 | Bulid 2D,3D drawing |
| 3 | CAD mould design |
| 4 | Send drawing to customer to confirm |
| 5 | Parts inspection/CNC machining/EDN machining |
| 6 | Mould assembly |
| 7 | Mould test |
| 8 | Send sample to confiom |
| 9 | Dilver the mould |
