Closure Types: CSD, Hot Filling, Aseptic, Flat Water
Bottle neck: 26mm, 2925, 3025, 1881, 1810, 38mm
Matching domestic and overseas injection or compression mould machine
Micron-sized accuracy, surface coating treatment on key parts
The mould is made of high quality steel; the hot runner adopts needle valve balance type plastic feeding; the product has beautiful appearance and very small size error and very high qualification ratio.
The company has needle valve type and non-needle valve type products available for customers selection.

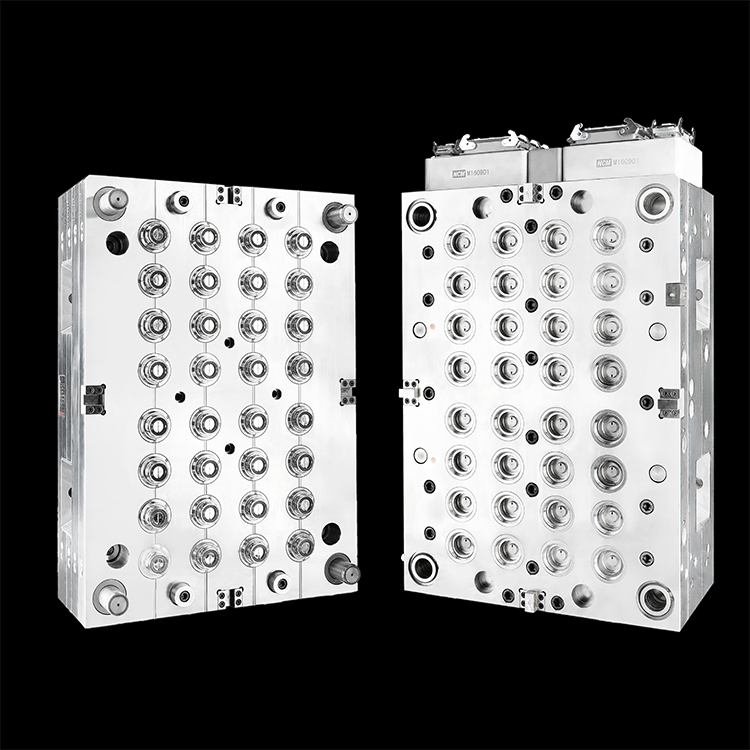

| Product Name | Plastic bottle cap mould | ||
| Mould base & Standard Component | DME,HASCO,MISUMI,LKM,Standard mold base made by Chinese high quality company, Self-made etc | ||
| Ejector System | Unscrew by motor , stripper plate , ejector sleeve , ejector pin | ||
| Quality assurance | ISO9001:2008 / CE certificate for European customers | ||
| Core & Cavity Steel | 2316 # steel, S136, FS636, SKD61, BeCu Stainless steel | ||
| Plastic material | PP , PC , PE , ABS , PVC etc | ||
| Injection System | Pin gate, Submarine gate, Valve gate etc | ||
| Cavity Number | 1*4, 1*6, 1*8, 1*12, 1*16, 1*24, 1*32, 1*48 etc | ||
| Cycle Time | Based on cap design | ||
| Tooling lead time | 30-60 Days | ||
| Mould life | At least 1.5million Shots | ||
| Steel hardness | HRC30-35 for base material. HRC45-48 for core and cavity material. HRC60-62 for special parts material. | ||
Adopt imported steel P20 , Germany 2316 , S136, FS636 etc.
Water cooling system: Each cavity and core have independent cooling system, BeCu add in the core of mold, shortening production cycle time.
Mould design:Rational mold design to extend mold life and get high production efficiency.
Mould surface treatment: Mirror hand polishing and mold plates chroming to create added-value.
Precision Machining to ensure high production efficiency & fine parting line effect.
Skilled Language in communication and experienced in international standard.
Hot runner system : China advanced brand or imported hot runner system brand. Each cavity has independent temperature control and heater system.
Anti-theft cap mold or based on customers design.
