1. Aplication:

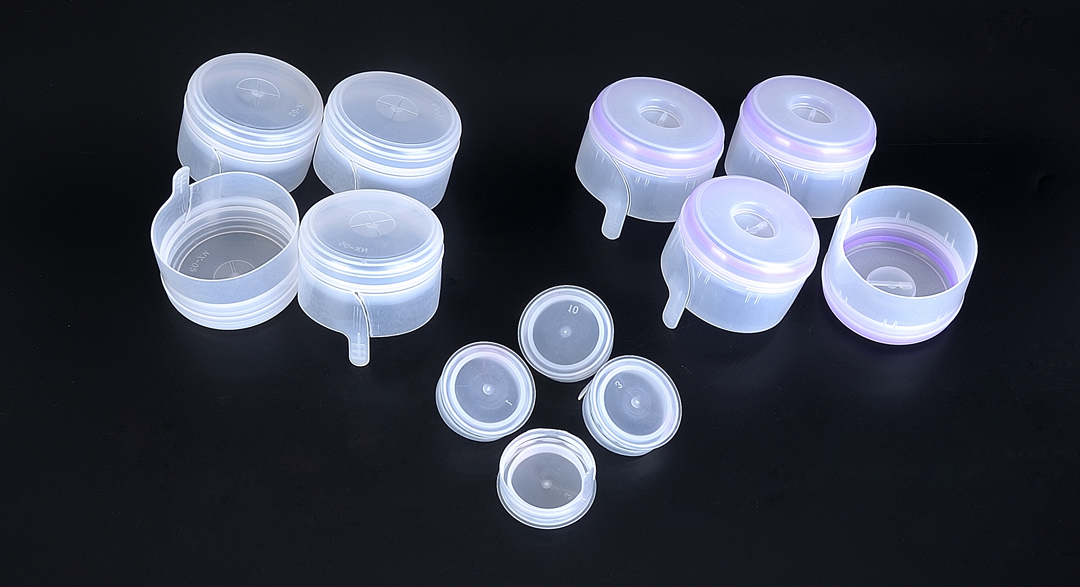

The machine apply to 5 Gallon cap labeling and sealing, it's suitable for 5gallon
cap manufacture and water factory.
2.Features:
1).The machine is specially designed for Large capacity factories, with the advanced techiniques,
it can help smart caps meet anti-fake,Sanitary,High-grade requirements.
2)Procedures: Automatic sorting cap, cap delivering, vacuum capping,
filming and feeding,cutting filmand sealing, second sealing, vacuum cap removing, quantity counter.
Machine Features:
1. Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
2. Simply installation, then can convenient for square and round bottle.
3. No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.
4. Unique sleeve labeling method, adopt to pressing sleeve labeling method, not only convenient but also reasonable.
5. Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity.
6. Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.
7. Middle guide-pole clip system,mould changing is more quick, no need any instrument.
8. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.
9. Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.
10. Stainless steel electric equipment controlling case, controlling adopt to Thinget PLC
11. Adopt to advanced man-computer Interface auto controlling technology, key electric component all adopt to
international famous industrial brand
| Cap Specification | Productivity Speed | Voltage | Power | Dimension L x W x H | N.W. |
| 5 Gallon Cap | 2400 pcs / h | 220V, 50hz | 2,2KW | 2300 x 1200 x 1700 mm | 650 (KGS) |
